- Flows from 3.0 GPM to 5.6 GPM
- The preferred pump frame in the car wash self-service industry
- Dual crankshaft for convenience
- Forged brass manifold with exclusive lifetime warranty
- Large capacity, die-cast, anodized aluminum oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
CW 47 Series – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
(CW2040 is dual shaft)
Pump Dimensions: 11.4″ x 10.8″ x 6.9″
Dimensions With Rails: 11.4″ x 10.8″ x 7.9″
Crankcase Oil Capacity: 33.8 oz.
Use GP Series 100 Oil
Showing all 8 results
-
CW2004
Specifications
GPM PSI RPM 1750
Bore .787 in./20 mm
Stroke .394 in./10 mm
HP 5.5 EBHP
Ship Weight 30 lbs.
CW 47 SERIES – 24 MM SOLID SHAFT -
CW2040
Specifications
GPM PSI RPM 750
Bore .787 in./20 mm
Stroke .630 in./16 mm
HP 5.2
Ship Weight 30 lbs.
CW 47 SERIES – 24 MM SOLID SHAFT -
CW2040
Specifications
GPM PSI RPM 1000
Bore .787 in./20 mm
Stroke .630 in./16 mm
HP 7.0 EBHP
Ship Weight 30 lbs.
CW 47 SERIES – 24 MM SOLID SHAFT -
CW2040
Specifications
GPM PSI RPM 1200
Bore .787 in./20 mm
Stroke .630 in./16 mm
HP 8.6 EBHP
Ship Weight 30 lbs.
CW 47 SERIES – 24 MM SOLID SHAFT -

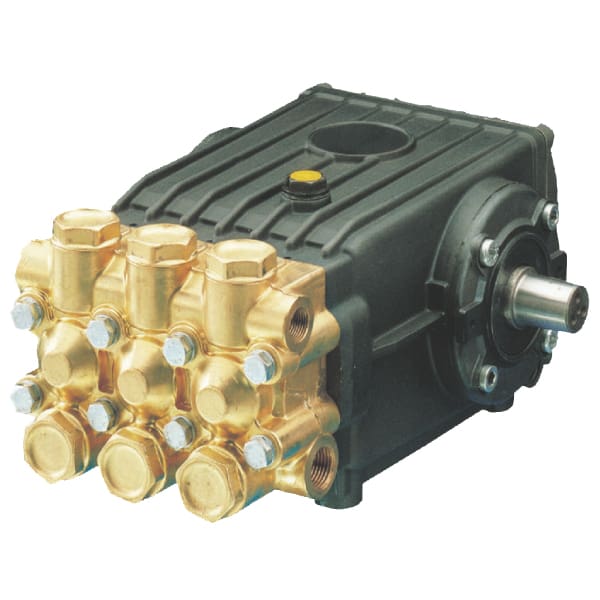

CW24
Specifications
GPM PSI RPM 750
Bore .787 in./20 mm
Stroke .630 in./16 mm
HP 8.6 EBHP
Ship Weight 30 lbs.
CW 47 SERIES – 24 MM SOLID SHAFT -
CW24
Specifications
GPM PSI RPM 1250
Bore .787 in./20 mm
Stroke .630 in./16 mm
HP 8.6 EBHP
Ship Weight 30 lbs.
CW 47 SERIES – 24 MM SOLID SHAFT -
CW3040
Specifications
GPM PSI RPM 1250
Bore .787 in./20 mm
Stroke .630 in./16 mm
HP 10.3 EBHP
Ship Weight 32.0 lbs.
CW 47 SERIES – 24 MM SOLID SHAFT -
CW3555
Specifications
GPM PSI RPM 1450
Bore .787 in./20 mm
Stroke .630 in./16 mm
HP 13.4 EBHP
Ship Weight 32 lbs.
CW 47 SERIES – 24 MM SOLID SHAFT
