For electric motors
60 Series – Features:
- Triplex plunger pumps
- Compact design
- Forged brass manifold with an exclusive lifetime warranty
- Long life, low pressure seals
- Oversized bearings and sight glass
60 Series – Hollow Shaft – Electric – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Gauge Port: 1/8″
Shaft Diameter: 5/8 (.625)in. or 3/4 (.750) in.
Pump Dimensions: 7.8″x 7.3″x 5.5″
Crankcase Oil Capacity: 11.8 oz.
Use GP Series 100 Oil
Showing all 14 results
-
TC1502E175
Specifications
GPM PSI RPM 1750
Bore .591 in./15 mm
Stroke 0.079 in./2 mm
HP 0.5 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 5/8″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
TC1504E345
Specifications
GPM PSI RPM 3400
Bore .591 in./15 mm
Stroke 0.158 in./4 mm
HP 3.2 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 5/8″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
TC1505E345
Specifications
GPM PSI RPM 3400
Bore .591 in./15 mm
Stroke .197 in./5 mm
HP 3.88 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 5/8″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
TC1506E345
Specifications
GPM PSI RPM 3400
Bore .591 in./15 mm
Stroke 0.256 in./6 mm
HP 4.81 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 5/8″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
TC1506E346
Specifications
GPM PSI RPM 3400
Bore .591 in./15 mm
Stroke 0.256 in./6 mm
HP 4.81 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
TC1507E345
Specifications
GPM RPM 3400
Bore .591 in./15 mm
Stroke 0.283 in./7 mm
HP 5.55 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 5/8″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
TC1507E346
Specifications
GPM PSI RPM 3400
Bore .591 in./15 mm
Stroke 0.283 in./7 mm
HP 5.55 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 5/8″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
TC1508E175
Specifications
GPM PSI RPM 1750
Bore .591 in./15 mm
Stroke 0.315 in./8 mm
HP 3.0 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 5/8″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
TC1508E346
Specifications
GPM PSI RPM 3400
Bore .591 in./15 mm
Stroke 0.315 in./8 mm
HP 5.65 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
TC1509E175
Specifications
GPM PSI RPM 1750
Bore .591 in./15 mm
Stroke .370 in./9.4 mm
HP 3.6 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 5/8″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
-
TC1802E175
Specifications
GPM PSI RPM 1750
Bore .709 in./18 mm
Stroke 0.079 in./2 mm
HP 0.8 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 5/8″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -

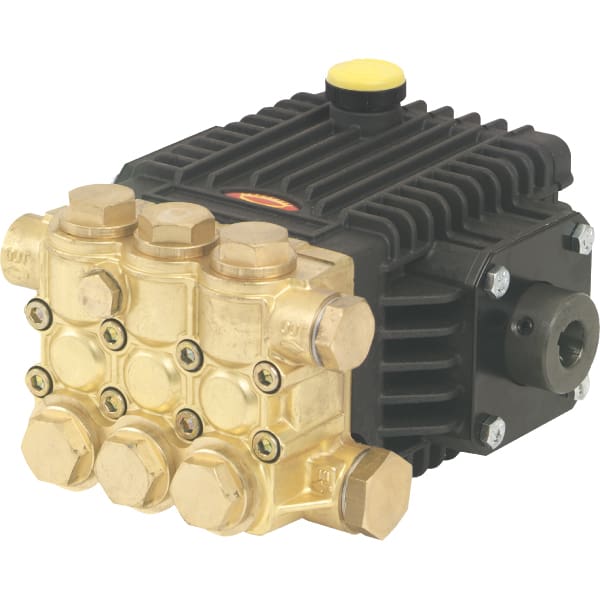

TC1809E175
Specifications
GPM PSI RPM 1750
Bore .709 in./18 mm
Stroke .370 in./9.4 mm
HP 4.7 EBHP
Ship Weight 15.1 lbs.
60 SERIES – 5/8″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS (NEMA 56C) -
