51 Series – Features:
- Triplex plunger pumps
- Forged brass manifold with an exclusive lifetime warranty
- Die-cast, anodized aluminum oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- Unitized, stainless steel inlet and outlet valves
- Ideal for all general cleaning and misting applications
51 Series – Solid Shaft – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread: 3/8″-19 BSP-F
Discharge Port Thread: 1/4″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 7.0″ x 6.9″ x 5.1″
Crankcase Oil Capacity: 11.2 oz.
Use GP Series 100 Oil
Showing all 8 results
-
TP2021S17
Specifications
PSI Bore 0.591 in./15 mm
Stroke 0.37 in./9 mm
GPM HP 0 HP
Ship Weight 11 lbs.
TP SERIES 51 – 5/8 INCH HOLLOW SHAFT -
TP2024S17
Specifications
PSI Bore 0.709 in./18 mm
Stroke 0.293 in./7 mm
GPM HP 0 HP
Ship Weight 11 lbs.
-
TP2032S17
Specifications
PSI Bore 0.709 in./18 mm
Stroke 0.37 in./9 mm
GPM HP 0 HP
Ship Weight 11 lbs.
-

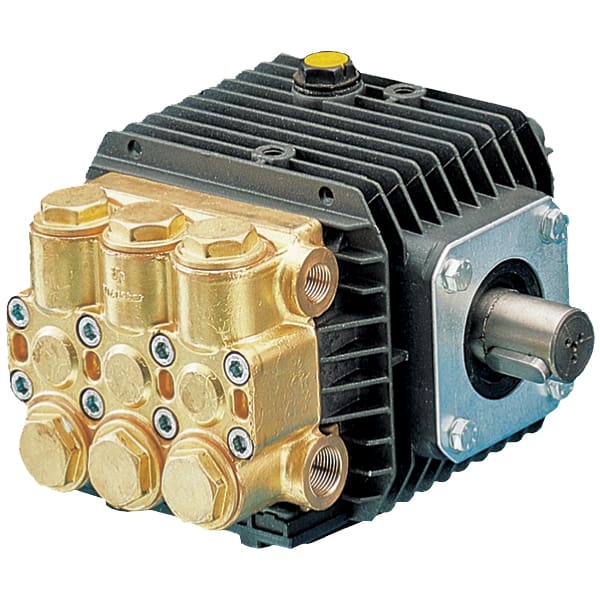

TT901
Specifications
GPM PSI RPM 2800
Bore .591 in./15 mm
Stroke .236 in./6 mm
HP 2.2 EBHP
Ship Weight 11.2 lbs.
51 SERIES – 24 MM SOLID SHAFT FOR PULLEY MOUNT OR DIRECT DRIVE WITH FLEX COUPLER AND BELL HOUSING -
TT9111
Specifications
GPM PSI RPM 1750
Bore 0.708 in./18 mm
Stroke .370 in./9.4 mm
HP 3.1 EBHP
Ship Weight 11.2 lbs.
51 SERIES – 24 MM SOLID SHAFT FOR PULLEY MOUNT OR DIRECT DRIVE WITH FLEX COUPLER AND BELL HOUSING -
TT931
Specifications
GPM PSI RPM 2800
Bore .591 in./15 mm
Stroke 0.315 in./8 mm
HP 3.0 EBHP
Ship Weight 11.2 lbs.
51 SERIES – 24 MM SOLID SHAFT FOR PULLEY MOUNT OR DIRECT DRIVE WITH FLEX COUPLER AND BELL HOUSING -
TT941
Specifications
GPM PSI RPM 2800
Bore .591 in./15 mm
Stroke .370 in./9.4 mm
HP 3.5 EBHP
Ship Weight 11.2 lbs.
51 SERIES – 24 MM SOLID SHAFT FOR PULLEY MOUNT OR DIRECT DRIVE WITH FLEX COUPLER AND BELL HOUSING -
TT951
Specifications
GPM PSI RPM 2800
Bore .591 in./15 mm
Stroke 0.283 in./7 mm
HP 2.6 EBHP
Ship Weight 11.2 lbs.
51 SERIES – 24 MM SOLID SHAFT FOR PULLEY MOUNT OR DIRECT DRIVE WITH FLEX COUPLER AND BELL HOUSING
