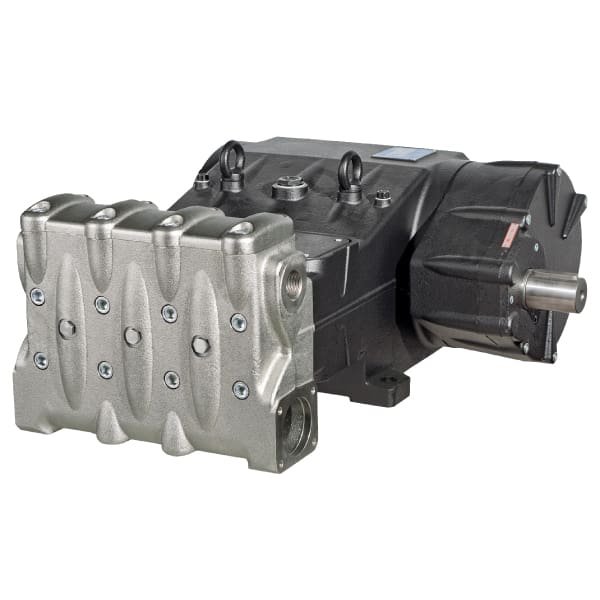

MKS

• Flows from 48.4 GPM to 128.2 GPM
• Low-high pressure packing design with integrated cooling system
• High volumetric efficient suction/delivery valves
• Splash lubrication
• Gear ratios: 1500 RPM=2.23:1, 1800 RPM=2.65:1, 2200 RPM=3.29:1
• Includes drain/priming valve kit
• SAE-C hydraulic drive available (w/ 2500 RPM version only)
• SAE-D hydraulic drive available (w/ 1800 RPM version only)
• Nickel-plated cast iron manifold

MKS Series – Specifications:
Max. Inlet Pressure: 45 PSI
Max. Fluid Temperature: *140° F
Inlet Port Thread: See specification sheet
Discharge Port Thread: See specification sheet
Shaft Diameter: 2.165″/55 mm
Stroke: 2.835″/72 mm
Pump Dimensions: 32.64″ x 29.38″ x 14.25″
Crankcase Oil Capacity: 456.5 oz./13.5 liters
Use GP Series 220 Oil

* Please consult technical manual or GP Sales Representative for Temperature/Inlet Pressure information
