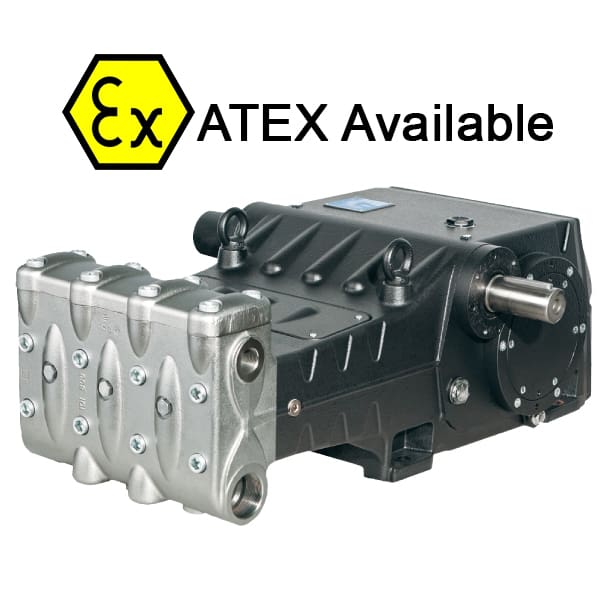

LK

• Flows from 37.0 GPM to 111.8 GPM
• Drive shaft with double projectionDouble pressure packings
• Splash lubrication
• Vertically fitted suction/delivery valves
• Includes drain/priming valve kit
• Gear ratios: 1500 RPM=2.95:1, 1750 RPM=3.158:1, 1900 RPM=3.389:1
• Nickel-plated cast iron manifold
• ATEX Available

LK Series – Specifications:
Max. Inlet Pressure: 45 PSI
Max. Fluid Temperature: *140° F
Inlet Port Thread: See specification sheet
Discharge Port Thread: See specification sheet
Shaft Diameter: 1.969″/50 mm
Stroke: 3.546″/90 mm
Pump Dimensions: 36.4″ x 26.4″ x 13.7″
Crankcase Oil Capacity:    473.5 oz./14 liters
Use GP Series 220 Oil

* Please consult technical manual or GP Sales Representative for Temperature/Inlet Pressure information
