KT

• Flows from 7.2 GPM to 37.5 GPM
• Double pressure packings
• Pressure packing design with integrated cooling system
• Horizontally fitted in-line valves
• Splash lubrication
• SAE-B hydraulic drive options available

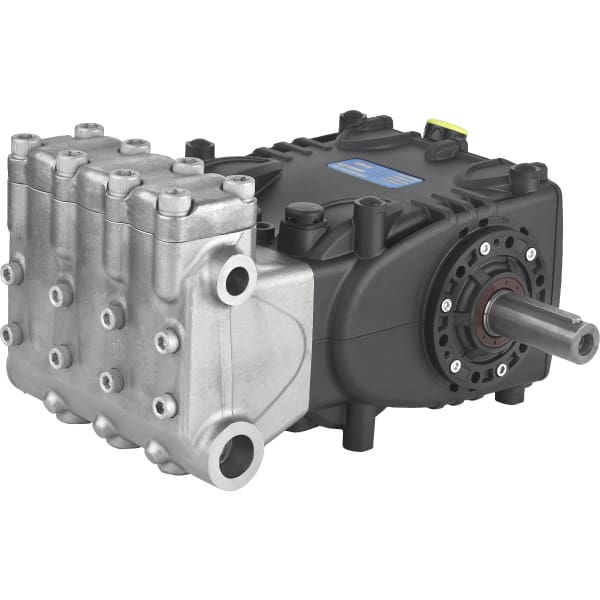

• 420 SS manifold (KT16A, 18A, 20A, 22A)

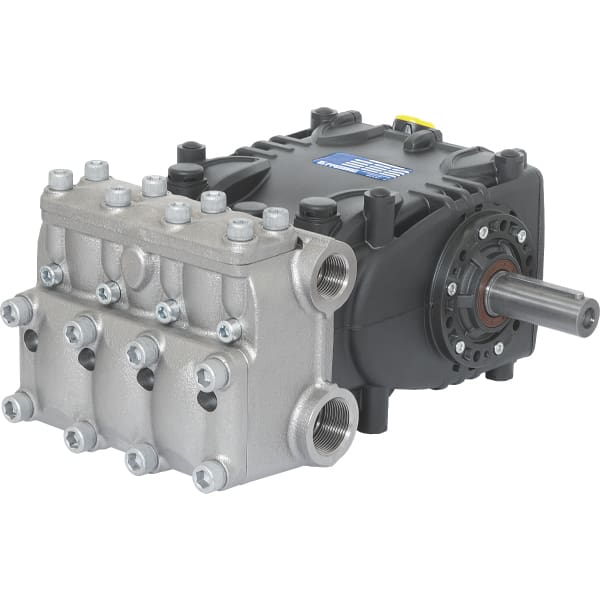

• Nickel-plated cast iron manifold (KT24A, 28A, 30A, 32A, 36A, 40A)

KT Series – Specifications:
Max. Inlet Pressure: 45 PSI
Max. Fluid Temperature: *140° F
Inlet Port Thread: See specification sheet
Discharge Port Thread: See specification sheet
Shaft Diameter: 1.181″/30 mm
Stroke:   1.102″/26 mm
Pump Dimensions: 15.55″ x 13.4″ x 8.35″
Crankcase Oil Capacity:    67.63 oz./2 liters
Use GP Series 220 Oil

* Please consult technical manual or GP Sales Representative for Temperature/Inlet Pressure information
